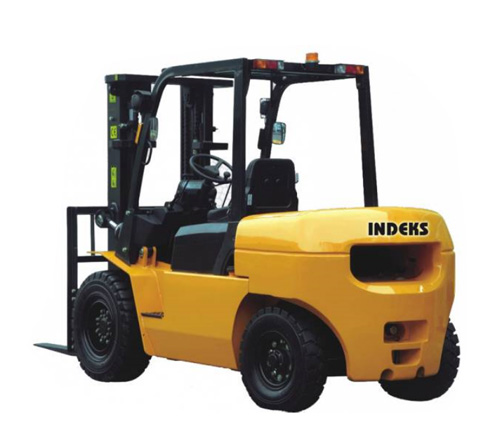

IND FD 60
|
| GENERAL |
| Fuel Type |
:
|
Diesel |
|
| Rated Capacity |
:
|
6.000 |
kg |
| Load Centre |
:
|
600 |
mm |
CHARACTERISTIC & DIMENSION
|
| Lifting Height |
:
|
3.000 |
mm |
| Free Lifting Height |
:
|
200 |
mm |
| Fork Size (LxWxH) |
:
|
1200 x 150 x 60 |
mm |
| Tilting Angle F/B （α°/β°） |
:
|
6° / 12° |
deg |
| Fork Overhang(Wheel centre to fork face) |
:
|
590 |
mm |
| Rear Overhang |
:
|
675 |
mm |
| Ground Clearance (Bottom of Mast) |
:
|
200 |
mm |
| All Dimensions |
Length to face of fork(without fork) |
:
|
3.515 |
mm |
| Overall Width |
:
|
1.995 |
mm |
| Mast Lowered Heght |
:
|
2.500 |
mm |
Mast Extended Height
(With Backrest) |
:
|
4.420 |
mm |
| Overhead guard Height |
:
|
2.450 |
mm |
| Turning Radius (Outside) |
:
|
3.300 |
mm |
| Min. Right Angle Stacking Aisle Width |
:
|
3.000 |
mm |
| PERFORMANCE |
| Speed |
Travel (Unladen) |
:
|
30 |
km/h |
| Lifting (Full Load) |
:
|
500 |
mm/h |
| Lowering (Full Load) |
:
|
500 |
mm/h |
| Max. Drawbar Pull (Full Load) |
:
|
54 |
KN |
| Max. Gradeability (Full Load) |
: |
32 |
% |
| CHASIS |
| Tyres |
Front |
:
|
8.25-15-14PR |
mm |
| Rear |
:
|
8.25-15-14PR |
mm |
| Tread |
Front |
:
|
1470 |
mm |
| Rear |
:
|
1700 |
mm |
| Wheelbase |
:
|
2.250 |
mm |
| WEIGHT |
| Selfweight |
:
|
8.640 |
kg |
Weight Distribution
(Full Load) |
Front |
:
|
13.050 |
kg |
| Rear |
:
|
1.590 |
kg |
Weight Distribution
(Unload) |
Front |
:
|
3.880 |
kg |
| Rear |
:
|
4.760 |
kg |
| POWER&TRANSMISSION |
| Battery (Voltage / Capacity) |
:
|
24 / 80 |
V/Ah |
Engine
Transmission
|
Model |
:
|
- |
|
| Manufactire |
:
|
Isuzu/Cummins |
|
| Rated Output / r.p.m |
:
|
82/2000 |
kw |
| Rated Torque / r.p.m |
:
|
416/1400-1600 |
N.m |
| Number of Cylinder |
:
|
6 |
|
| Bore x Stroke |
:
|
105 x 125 |
mm |
| Displacement |
:
|
6949 |
|
| Fuel Tank Capacity |
:
|
140 |
L |
| Type |
:
|
Powershift |
|
| Stage (FWD/ RVS) |
:
|
2 / 2 |
